ELECTRIC CHAIN HOISTS NITCHI BRAND



MH5 Series

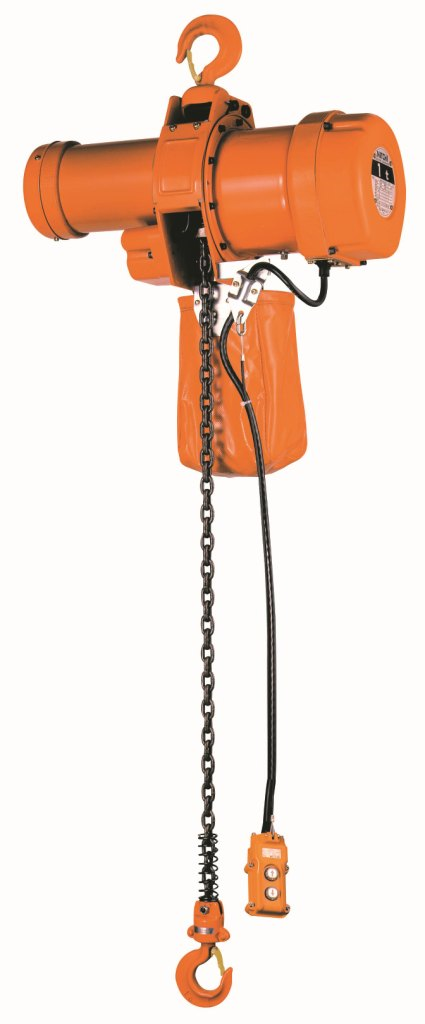

CH-EC-MH5SeriesHCCH-EC-MH5SeriesHC 2

 EMT-MH-5 0.5ton       MH-5 1ton

Specifications are subject to change without notice



High quality and advanced safety mechanism MH-5

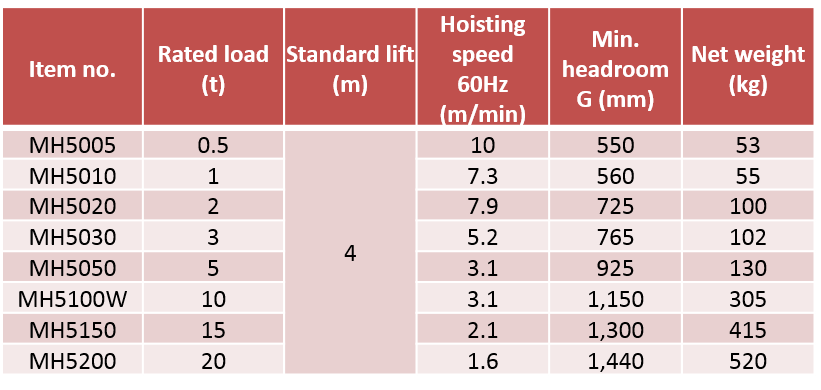

CH-EC-MH5SeriesHC table

Available:
» Suspension type.
» Motorized trolley type.
» Geared trolley type.
» Plain trolley type.

» Power source: 220V & 440V/3PH/60Hz, 100V/1PH/60HZ.

Features:
» 0.5ton up to 50ton capacities.
» Steel construction.
» Incorporated Dual-brake system.
» Over-hoisting & Over-lowering Limit switch.
» Standard negative phase protection relay for 3-PH Models.
» Option: Over load protection, NN Load chain (Resisting rust and corrosion) and more.
